Non-Streamlined Princess Coronation Class Pacifics

Rail Album for railway and other photographs


Part 1 (this page)    Part 2


Rail Album for railway and other photographs
Ex-LMS Coronation class 4-6-2 number 46223 "Princess Alice" on an Up express train at Carlisle Citadel 13th July 1963. This locomotive entered service in 1937 in streamlined form.



Rail Album for railway and other photographs

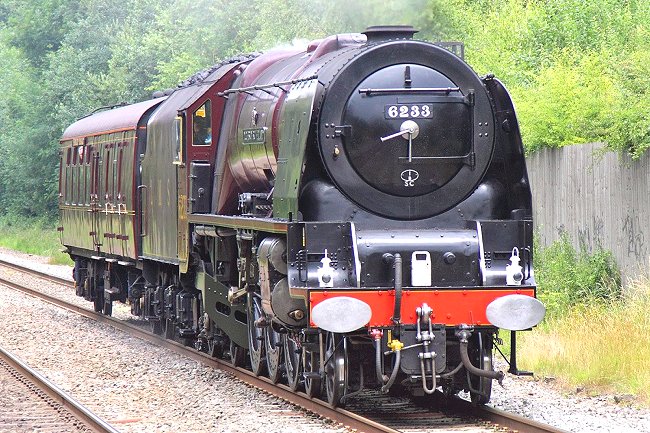

Preserved LMS Coronation class Pacific 6233 "Duchess of Sutherland" at Penmaenmawr 2nd August 2009. This locomotive entered service in 1938 in non-streamlined form.  Photograph Nick Broome.



  There were three designs of non-streamlined Princess Coronation locomotives:

Built as streamlined and then converted
Built as non-streamlined
Built as non-streamlined with roller bearings





Rail Album for railway and other photographs
Ex-LMS Coronation class 4-6-2 number 46240 "City of Coventry" on an Up express train from Liverpool to Euston at Hanslope, near Rugby, 1st August 1963.  This locomotive entered service in 1940 in streamlined form.




Loco Class:
Introduced:
Power Classification:
Designer:
Boiler Steam Pressure:
Cylinders:
Cylinder Size:
Driving Wheels:
Weight:
Boiler:
Valve Gear:
Tractive Effort: :

Princess Coronation
1938 (non-streamlined version)
7P (8P from 1951)
William Stanier
250 lbs sq in
4
16.25 x 28 ins
6 ft  9 ins
105 t  5 cwt (non-streamlined version)
Tapered. Superheated
Walschaerts
40,000 lbs






Rail Album for railway and other photographs
Official photograph of LMS Princess Coronation Class steam locomotive 6230 "Duchess of Buccleuch".


Rail Album for railway and other photographs
LMS Princess Coronation Class Non-Streamlined 4-6-2 Steam Locomotive Diagram.



Rail Album for railway and other photographs
Preserved LMS Coronation class Pacific 6233 "Duchess of Sutherland" at Elford 30th June 2009.
Photograph Nick Broome.


   Rail Album for railway and other photographs
Coronation class 4-6-2 number 46257 "City of Salford" on the Up "Royal Scot" at Crewe.  This locomotive was the last of the class to be built, entering service after nationalisation of British Railways in 1948 in non-streamlined form. It was one of two Princess Coronation class locomotives equipped with roller bearings.




Tender coal:
Water:
Assistance:
Water pick up gear:

10 tons
4,000 gallons
Steam powered coal pusher
LMS standard type






Rail Album for railway and other photographs
Preserved LMS Coronation class Pacific 6233 "Duchess of Sutherland" at Lapworth 30th June 2009.
Photograph Nick Broome.






Heating area - firebox:
Heating area - tubes:
Heating area - total:
Superheater:
Grate Area:

230 sq ft
2,577 sq ft
2,807 sq ft
856 sq ft
50 sq ft







Rail Album for railway and other photographs
Ex-LMS Coronation class Pacific 46233 "Duchess of Sutherland" leaves London Euston with the Down "Midday Scot" on 21st July 1956. This locomotive entered service in 1938 in non-streamlined form.



BR diagram of ex-LMS Princess Coronation Class Non-Streamlined 4-6-2 Steam Locomotive fitted with roller bearings, BR numbers 46256 and 46257.



Rail Album for railway and other photographs

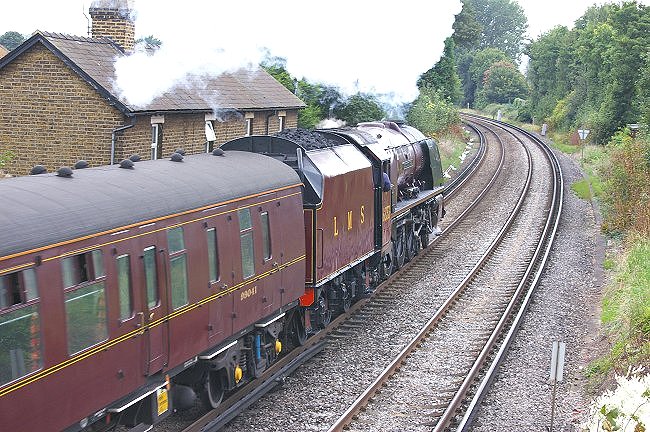

A passing view of preserved LMS Coronation class Pacific 6233 "Duchess of Sutherland" on train 1Z82 from London Victoria to Worcester 27th August 2008.


Rail Album for railway and other photographs
Preserved LMS Coronation class Pacific 6233 "Duchess of Sutherland" at Abergele 2nd August 2009.
Photograph Nick Broome.




A BR diagram of an ex-LMS Princess Coronation Pacific locomotive in rebuilt form. The locomotives were numbered 46220 to 48255.



Rail Album for railway and other photographs
Ex-LMS Coronation class Pacific 46223 "Princess Alice" hauls train W106 southbound near Clifton & Lowther approaching Shap, south of Penrith.  The first coach in the train is of LNER origin and is in BR carmine & cream livery.
The light exhaust smoke demonstrates that these were powerful locomotives which were capable of hauling significant loads up Shap bank without having to be thrashed. This locomotive entered service in 1937 in streamlined form.






LMS 6233 "Duchess of Sutherland" features in a few photographs on this page.  The locomotive was delivered from Crewe Works in July 1938, having cost approximately £13,800.  The single chimney was replaced by a double one in March 1941.  Smoke deflectors were fitted in September 1945.

As BR 46233 "Duchess of Sutherland" the locomotive was withdrawn from service at Edge Hill Motive Power Depot in February 1964.  She was then displayed for many years at the Butlin's holiday camp in Ayr before being refurbished and returned to use on the main line.






Rail Album for railway and other photographs

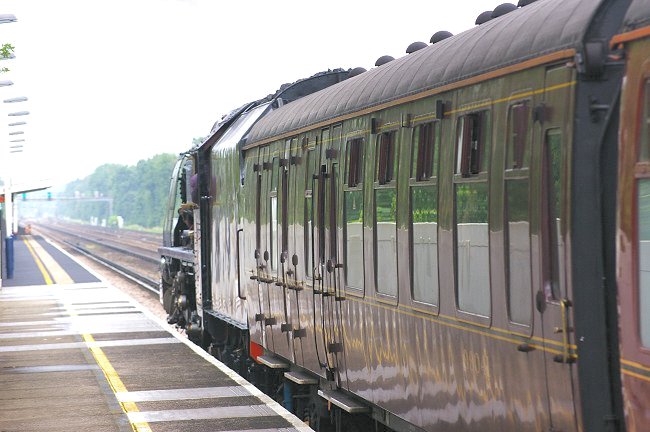

This view along preserved LMS Coronation class Pacific 6233 "Duchess of Sutherland" clearly shows how the smoke deflectors were angled. The location is Hersham 1st June 2008.
