USATC S-160 2-8-0s

United States Army Transport Corps

Rail Album for railway and other photographs


Part 1    Part 2 (this page)



Rail Album for railway and other photographs
Another view of the S-160 WD 93257 "Carl R Gray Jr" on the Longmoor Military Railway  Behind the loco's tender is a ramp wagon for loading tanks onto trains. One wheelset was temporarily removed and the sloping surface of the wagon then provided the necessary loading ramp. Photograph Frank Jones.


  The S-160 2-8-0s were designed to be lifted by their boilers. A securing ring for lifting is located at the top of the front of the smokebox. The dome cover could be removed and this provided the second anchoring point for the crane's lifting bar.



 Rail Album for railway and other photographs

Another view of the USATC S160 2-8-0s stored at Penrhos Junction in South Wales.


  Report Dates

Ships Carrying S-160 Locomotives to Britain


  13th April 1943      'Kronprinsen' 4 locos 1887, 1888, 1889, 2083. Manchester.
  13th April 1943      Four locos on S.S. 'Pacific Grove' bound for Glasgow, notified 05 Apr, 'will not now arrive'.
  13th April 1943      Two locos on 'Tigre', notified yesterday, are 2053 and 1878.
  19th April 1943      'Laurits Svenson' 4 locos 2101, 2111, 2113, 2114. Glasgow.
  19th April 1943      'Mathura' 2 locos 1885, 1886. Liverpool
  19th April 1943      'Robert Gray' 2 locos. London.
  19th April 1943      'Samuel Bakke' 2 locos. Liverpool.
  19th April 1943      'Schoarie' 2 locos. Cardiff.
  19th April 1943      'Steel Traveller' 2 locos 1883, 1884. Liverpool.
  19th April 1943      Two locos on 'Jonathan Worth', notified 13 Apr 43, are 2246, 2247.




Rail Album for railway and other photographs

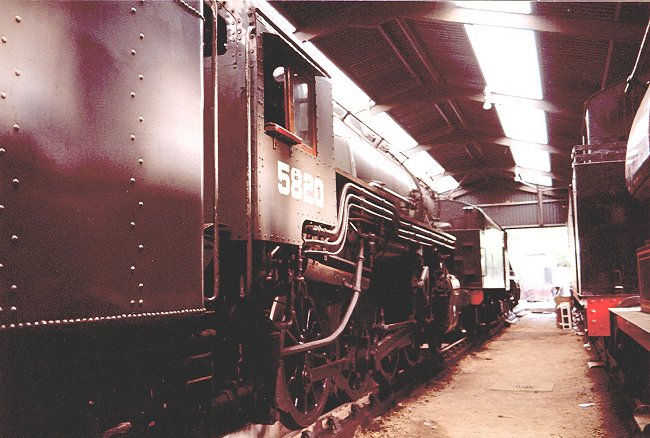

Another view of USATC S-160 number 5820 in 1985.  This locomotive is Lima 8758 of 1945.



  USATC S-160 2-8-0 Number Series

1600 - 1926
2000 - 2929
3200 - 3689
5700 - 5849





Rail Album for railway and other photographs
USATC S-160 number 1680 at an unidentified location. Locomotive built by the Baldwin Locomotive Works of Philadelphia. Photograph Edward Talbot collection.


  You may be interested in these railway DVDs: On Track Railway DVD and Book Catalogue
Classic Southern Region Volume 1
The West Midlands
Ffestiniog Railway Locomotives




Rail Album for railway and other photographs

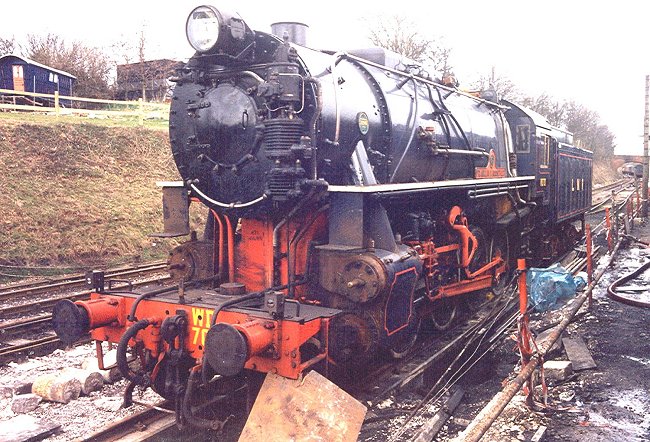

USATC S-160 running as WD 701 "Franklin D. Roosevelt" at Ropley on the Mid-Hants Railway 4th March 1994.



  REC Operating Committee Minute 4428 of 6th August 1943

Delivery of 400 US locos for British Railways now almost complete. 'Locomotives of the 370 batch should be sent to Ebbw Shops for adjustment and then forwarded to storage places, as may be determined'.

US authorities to make 'Transportation Corps' stencils and send soldiers to apply to tenders at railway centres. Railways will use the stencils to mark tenders as they pass through shops.





Rail Album for railway and other photographs

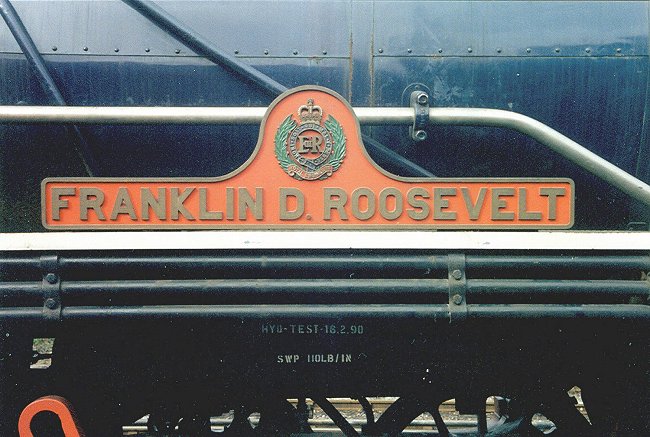

The nameplate of preserved locomotive WD 701.


  Report Dates

Ships Carrying S-160 Locomotives to Britain


  19th April 1943      Two locos on 'Jonathan Worth', notified 13 Apr 43, are 2246, 2247.
  27th April 1943      'Emma Bakke' 4 locos 1841, 1897, 1898, 1899. Liverpool.
  27th April 1943      'Fernmoor' 4 locos 1900, 2100, 2103, 2112. Manchester.
  27th April 1943      'Pacific Exporter' 2 locos 1895, 1896. Liverpool.
  1st May 1943      'Empire Heritage' 6 locos 1901, 1902, 1891, 1892, 1893, 1894. Liverpool.
  1st May 1943      'Fort Louisbourg' 4 locos 2273, 2274, 2286, 2295. Liverpool.
  1st May 1943      'Vermer' 2 locos 2115, 2117. Liverpool.
  1st May 1943      'Empire Southey' 2 locos 2250, 2251. Hull 10 May.
  10th May 1943      'Alcoa Trader' 2 locos 2123, 2124. Swansea.
  10th May 1943      'James Turner' 2 locos 2120, 2121. Liverpool.




Rail Album for railway and other photographs

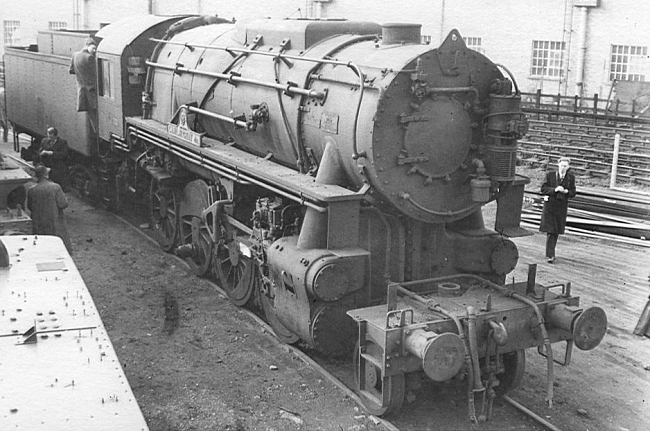

Another view of WD 700 at the works of W. G. Bagnall at Stafford 27th March 1954.


  You may be interested in these railway books: On Track Railway DVD  and Book Catalogue
Power of the V2s
Working Steam: Gresley V2s
The Midland Around London: A Colour Portfolio
Sierra Leone Narrow Gauge




Rail Album for railway and other photographs

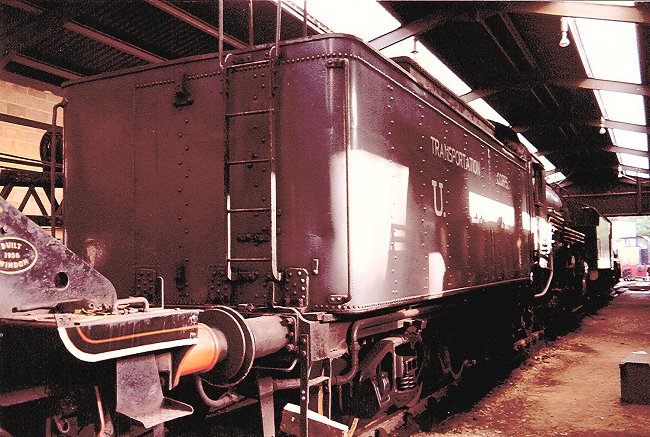

The tender of USATC S-160 number 5820, Lima 8758 of 1945, photographed in 1985.



  REC Mechanical & Electrical Committee Minute 1499 of 11th August 1943

Spares for US 2-8-0 locos to be requisitioned from;-
US Army Depot,
Transportation Stores Section,
Burton on Trent
Staffs.






  Gift ideas for wives, girlfriends and others - Blue Heron Jewellery
Necklaces, Bracelets, Earrings, Diamante, Gemstones, Swarovski, Magnetic





Rail Album for railway and other photographs
The cab layout of a USATC S-160.


  USATC Number Series Builder
  1600 - 1676 Alco
  1677 - 1826 Baldwin
  1827 - 1926 Lima
  2000 - 2151 Alco
  2152 - 2241 Lima
  2242 - 2379 Baldwin
  2380 - 2459 Alco
  2500 - 2589 Lima
  2590 - 2775 Baldwin
  2776 - 2803 Lima
  2804 - 2929 Alco
  3200 - 3379 Alco
  3380 - 3559 Baldwin
  3560 - 3599 Lima
  3600 - 3689 Lima
  5700 - 5849 Lima




Rail Album for railway and other photographs
USATC S-160 running as WD 701 "Franklin D. Roosevelt" outside the locomotive shed at Ropley on the Mid-Hants Railway on 10th March 1994.



  Report Dates

Ships Carrying S-160 Locomotives to Britain


  10th May 1943      'Pacific Enterprise' 4 locos 2125, 2126, 2127, 2128. Liverpool.
  10th May 1943      'Stephen A Douglas' 4 locos 2104, 2105, 2106, 2107. Liverpool.
  10th May 1943      'Norfalk' 2 locos 2252, 2253. Hull.
  14th May 1943      'Bernard N Baker' 2 locos 2298, 2299. Liverpool.
  14th May 1943      'Edward N Hurley' 2 locos 2287, 2296. Liverpool.
  14th May 1943      'Elizabeth Bakke' 4 locos 2146, 2150, 2151, 1877. Glasgow.
  14th May 1943      'Glenogle' 4 locos 2118, 2122, 2129, 2134. Liverpool.
  14th May 1943      'Montevideo' 4 locos 2130, 2131, 2132, 2133. Swansea.
  14th May 1943      'Noesaniwi' 4 locos 2144, 2145, 2066, 2067. Cardiff.
  14th May 1943      'Ralph Waldo Emerson' 4 locos 2135, 2136, 2137, 2138. Hull.
       Also more locomotives on various ships, too numerous to list here












LMS motive power inspectors who rode on the S160s hauling coal trains between Toton and Brent shortly after their arrival were so impressed with the self-cleaning smokeboxes, rocker ashpans and drop grates, that these fittings were incorporated in post-war LMS engines and BR 'Standard' locomotive designs.













Rail Album for railway and other photographs

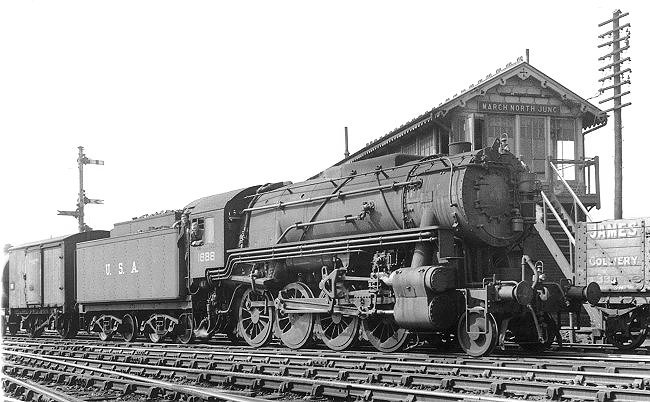

USATC 1888 at March North Junction LNER (GER). Locomotive built by Lima Locomotive Works of Lima, Ohio. On 13th April 1943 this locomotive was reported to be one of four aboard the 'Kronprinsen', due to dock at Manchester about the 21st of April. The wagon on the left of the picture is a standard LNER 12-ton van, and that on the right is a privately owned coal wagon. Photograph L. W. Perkins via Edward Talbot.
