LMS 4-6-0 Type 5MT Locos

"Black Fives"

Rail Album for railway and other photographs


Part 1 (this page)    Part 2


Rail Album for railway and other photographs

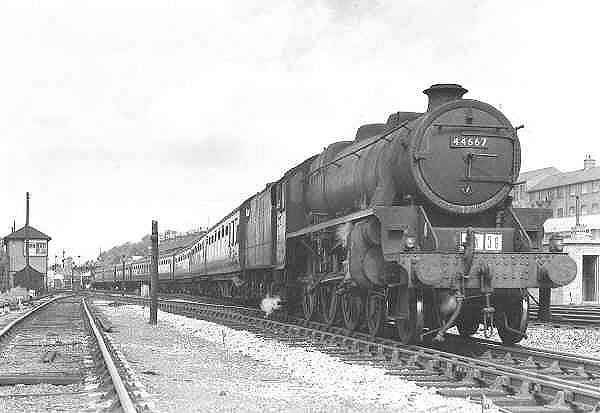

Black Five: BR 44667 at High Wycombe.  The shed plate reads 2F.


  The LMS "Black Five" 4-6-0s were designed under the direction of William Stanier.  They depart from previous LMS practice by having tapered boilers, a feature which William Stanier brought with him from his previous employment with the GWR.  The first example was introduced to traffic in 1934 or 1935.




Rail Album for railway and other photographs
Black Five: BR 44871 approaches Coxes Mill at Addlestone with train 1Z82 from London Victoria to Swanage.
31st May 2010.



  As standard the class was fitted with Walschearts valve gear.  However a few examples were fitted with either Caprotti or Stephenson valve gear.



Rail Album for railway and other photographs
LMS Black Five Steam Locomotive: Weight Diagram.

Rail Album for railway and other photographs
Black Five: BR 44941 at High Wycombe.  The shed plate reads 17B.
Note the typical GWR semaphore signals.



  You may be interested in these railway books: On Track Railway DVD  and Book Catalogue
The Great Western Railway from Dean to Churchward - Volume One
Farewell to Steam
Holborn Viaduct to Lewisham



 Rail Album for railway and other photographs

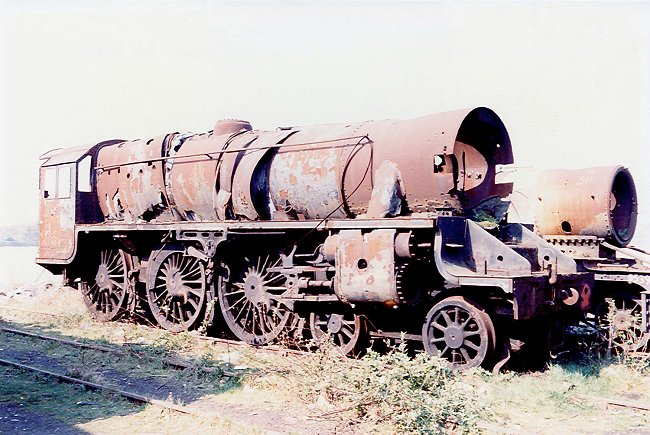

LMS Black Five BR 44901 at Dai Woodham's scrapyard in Barry 23rd April 1987.





Power Classification:
Driving Wheels:
Cylinders:
Boiler Pressure:
Tractive Effort:

5P 5F (5MT)
6' 0" diameter
2 (18.5 x 28 ins)
225 lbs / sq in
25,455 lbs





 Rail Album for railway and other photographs

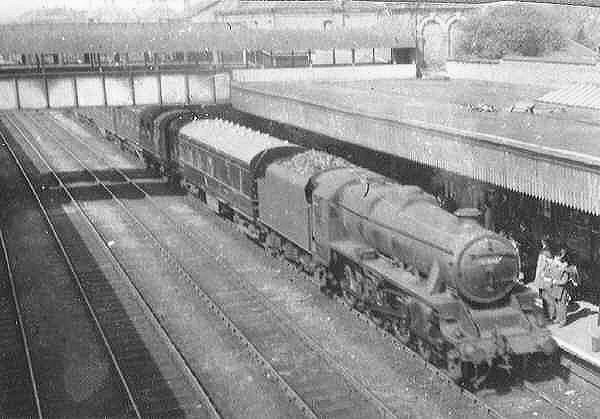

LMS Black Five 5418 stands in Coventry station on the 10:35 Birmingham New Street to London Euston.

Rail Album for railway and other photographs
Black Five: LMS 5000 at Bridgenorth on the Severn Valley Railway  10th July 1983.
This locomotive was built by the LMS Crewe Works in 1934, their works number 216.



  You may be interested in these railway DVDs: On Track Railway DVD and Book Catalogue
Along LMS Lines. Volume 1
Along LMS Lines. Volume 3
Rhodesia / Zimbabwe



Rail Album for railway and other photographs
Black Five: BR 44849 on the GWR / GCR joint line to the west of London.  The shed plate reads 55A.


 Rail Album for railway and other photographs

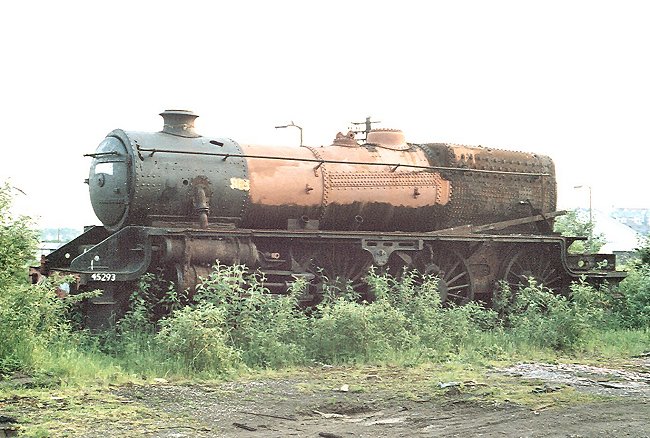

LMS Black Five BR 45293 at Dai Woodham's scrapyard in Barry in 1986.

Rail Album for railway and other photographs

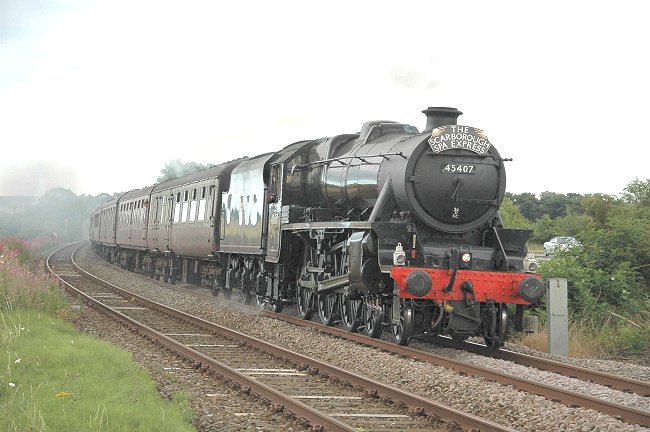

Black Five: BR 45407 hauling the "Scarborough Spa Express" in 2010. Photograph Mark Jones.
