British Rail Ferry Weltrol EJC wagon number
ADB.901204 at Stratford on 10th September 1994. This wagon was
built at BR's Ashford works in 1964 as part of lot 3273.

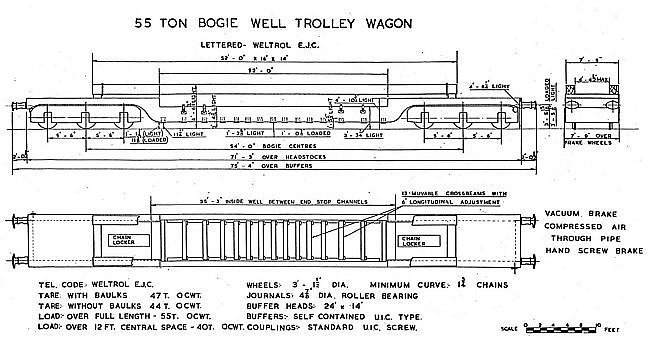

BR ferry well wagon diagram.
| |
|
|
|
| |
Builder
BR Diagram
Original Numbers
RIV numbers
TOPS Code
Load
|
BR Ashford
2/750
B.901200 up to B.901205
31 70 929 6 001 up to 006
YSW, YVW and YYW
55 t |
|
| |
|
|
|

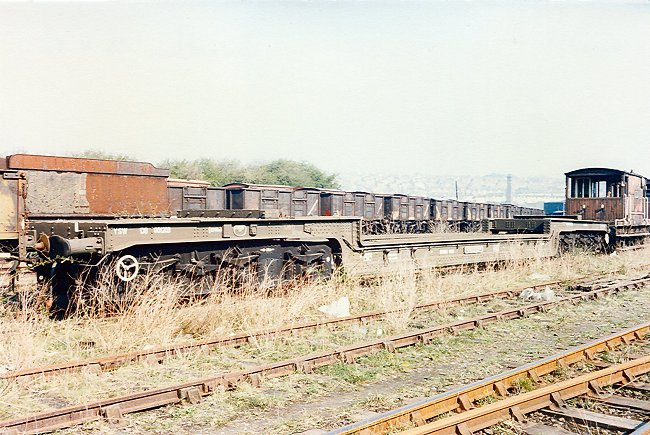

BR Ferry Well wagon number DB.901203 in
Woodhams scrapyard at Barry in South Wales on 23rd April 1987. The wagon
carried TOPS code YSW. Of note in this photograph is the ex-GWR steam
locomotive tender.

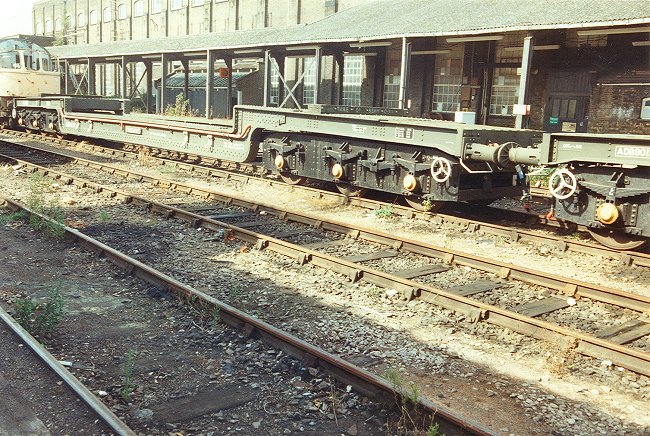

BR Ferry Well wagon number ADB.901205 at Stratford on 10th September 1994.
These wagons were fitted with vacuum brakes for working in Britain and
an air pipe for use when working overseas.
Another BR ferry well wagon diagram.
|
